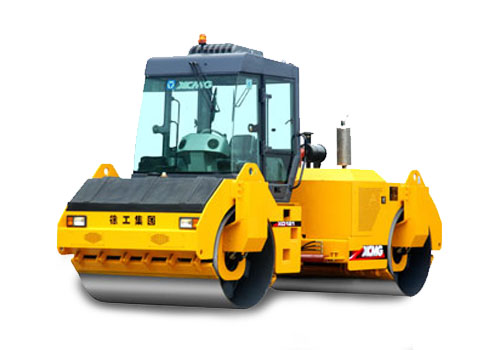

XD121E Road Roller Technical Specifications:
|
Type
|
Unit
|
XD121E
|
|
Operating weight (including cab)
|
kg
|
12300
|
|
load on front drum
|
kg
|
6150
|
|
Load on rear wheels
|
kg
|
6150
|
|
Static linear load
|
N/cm
|
295/295
|
|
Speed
|
km/h
|
0~10
|
|
Gradeability in theory
|
%
|
30
|
|
Minimum turning radius
|
mm
|
4770/6900
|
|
Crab-walking distance
|
mm
|
160
|
|
Minimum ground clearance
|
mm
|
340
|
|
Wheel base
|
mm
|
3700
|
|
Steering angle
|
± °
|
35
|
|
Swing angle
|
±°
|
8
|
|
Vibration frequency
|
Hz
|
45—48
|
|
Nominal amplitude
|
mm
|
0.41/0.8
|
|
Centrifugal force
|
kN
|
85/140
|
|
Model and manufacturer
|
|
DEUTZ BF4M2012C
|
|
Rated rotating speed
|
r/min
|
2300
|
|
Rated power
|
kW
|
98
|
|
Rated oil wear
|
g.kw/h
|
205
|
|
Water tank capacity
|
L
|
2×450
|
|
Fuel tank capacity
|
L
|
210
|
& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
