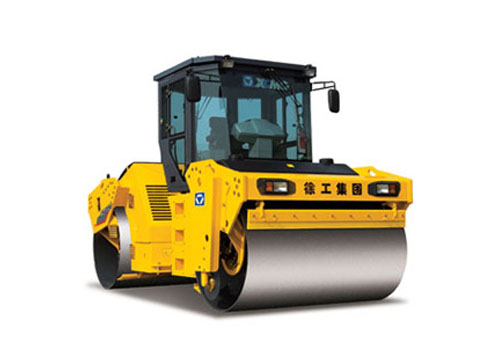

XD142 Road Roller Technical Specifications:
|
Type
|
Unit
|
Specifications
|
|
Operating Weight
|
kg
|
14000
|
|
Static Linear Load
|
N/cm
|
328/328
|
|
Speed Range
|
|
|
|
I Speed
|
km/h
|
6.5
|
|
II Speed
|
km/h
|
13
|
|
Theoretical Gradeability
|
%
|
35
|
|
Min. Turning Radius(Inside/Ouside)
|
mm
|
5000/7100
|
|
Vibration Frequency
|
Hz
|
50/67
|
|
Nominal Amplitude
|
mm
|
0.3/0.8
|
|
Centrifugal Force
|
kN
|
110/170
|
|
Drum Diameter
|
mm
|
1300
|
|
Drum Width
|
mm
|
1400
|
|
Engine, Model
|
|
DEUTZ BF04M2012C
|
|
Rated Power
|
kW
|
2300 r/min,98
|
& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
