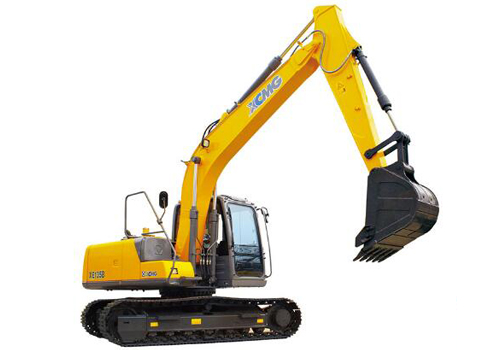

XE135B Excavator Technical Specifications:
|
Model
|
Unit
|
XE135B
|
|
Operating weight
|
kg
|
13800
|
|
Standard bucket capacity
|
m³
|
0.4-0.52
|
|
Engine
|
Engine Model
|
/
|
ISUZU BB-4BG1TRP
|
|
Direct injection
|
/
|
√
|
|
Four strokes
|
/
|
√
|
|
Water cooling
|
/
|
√
|
|
Turbo charged
|
/
|
√
|
|
Air to air intercooler
|
/
|
×
|
|
No. of cylinders
|
/
|
4
|
|
Rated power/speed
|
kw/rpm
|
69.6/2200
|
|
Max. torque/speed
|
N.m
|
337.6
|
|
Displacement
|
L
|
4.329
|
|
The main performance
|
Travel speed
|
km/h
|
5.16/3.03
|
|
Swing speed
|
r/min
|
12.3
|
|
Max. gradeability
|
/
|
≥35
|
|
Ground pressure
|
kPa
|
42
|
|
Max.Bucket digging force
|
kN
|
85
|
|
Max.arm crowd force
|
kN
|
65
|
|
Max.traction force
|
kN
|
134
|
|
Hydraulic system
|
Main pump
|
/
|
2????
|
|
Rate flow of main pump
|
L/min
|
2×123
|
|
Max pressure of prime relief valve
|
MPa
|
31.4/34.3
|
|
Max pressure of travel system
|
MPa
|
34.3
|
|
Max pressure of swing system
|
MPa
|
25
|
|
Max pressure of pilot system
|
MPa
|
3.9
|
|
Oil capacity
|
Fuel tank capacity
|
L
|
250
|
|
Hydraulic tank capacity
|
L
|
130
|
|
Engine lubrication
|
L
|
14
|
|
Overall dimensions
|
A Overall length
|
mm
|
7770
|
|
B Overall width
|
mm
|
2512
|
|
C Overall height
|
mm
|
2880
|
|
D Overall width of upperstructure
|
mm
|
2512
|
|
E Track length
|
mm
|
3660
|
|
F Overall width of undercarriage
|
mm
|
2490
|
|
G Crawer width
|
?
|
500
|
|
H Track length on ground
|
mm
|
2910
|
|
I Crawer gauge
|
mm
|
1990
|
|
J Clearance under counter weight
|
mm
|
964
|
|
K Ground clearance
|
mm
|
478
|
|
L Min.tail swing radius
|
mm
|
2294
|
|
Working range
|
A Max. digging height
|
mm
|
8641
|
|
B Max. dumping height
|
mm
|
6181
|
|
C Max. digging depth
|
mm
|
5538
|
|
D 8inch horizonal digging depth
|
mm
|
5287
|
|
E Max. vertical wall digging depth
|
mm
|
4727
|
|
F Max. digging reach
|
mm
|
8296
|
|
G Min. swing radius
|
mm
|
2335
|
|
Angle of arm deflection
|
Degree
|
——
|
& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
