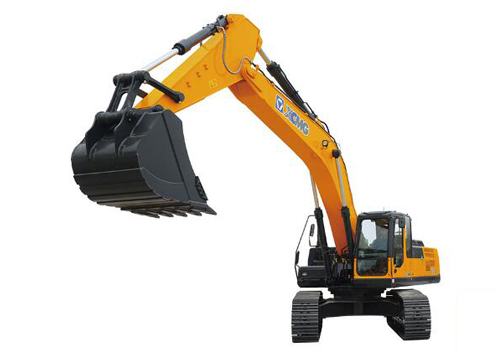

XE370CA Excavator Technical Specifications:
|
Model
|
Unit
|
XE370CA
|
|
Operating weight
|
kg
|
36600
|
|
Standard bucket capacity
|
m³
|
1.4~1.8
|
|
Engine
|
Engine Model
|
/
|
ISUZU AA-6HK1XQP
|
|
Direct injection
|
/
|
√
|
|
Four strokes
|
/
|
√
|
|
Water cooling
|
/
|
√
|
|
Turbo charged
|
/
|
√
|
|
Air to air intercooler
|
/
|
√
|
|
No. of cylinders
|
/
|
6
|
|
Rated power/speed
|
kw/rpm
|
184/2000
|
|
Max. torque/speed
|
N.m
|
872.8/2000
|
|
Displacement
|
L
|
7.79
|
|
The main performance
|
Travel speed
|
km/h
|
5.4/3.2
|
|
Swing speed
|
r/min
|
9.7
|
|
Max. gradeability
|
/
|
≥35
|
|
Ground pressure
|
kPa
|
66.6
|
|
Max.Bucket digging force
|
kN
|
242
|
|
Max.arm crowd force
|
kN
|
183
|
|
Max.traction force
|
kN
|
285
|
|
Hydraulic system
|
Main pump
|
/
|
2 Plunger pump
|
|
Rate flow of main pump
|
L/min
|
2×280
|
|
Max pressure of prime relief valve
|
MPa
|
31.5/34.3
|
|
Max pressure of travel system
|
MPa
|
34.3
|
|
Max pressure of swing system
|
MPa
|
27.5
|
|
Max pressure of pilot system
|
MPa
|
3.9
|
|
Oil capacity
|
Fuel tank capacity
|
L
|
630
|
|
Hydraulic tank capacity
|
L
|
320
|
|
Engine lubrication
|
L
|
28
|
|
Overall dimensions
|
A Overall length
|
mm
|
11246
|
|
B Overall width
|
mm
|
3190
|
|
C Overall height
|
mm
|
3350
|
|
D Overall width of upperstructure
|
mm
|
2960
|
|
E Track length
|
mm
|
5035
|
|
F Overall width of undercarriage
|
mm
|
3190
|
|
G Crawer width
|
?
|
600
|
|
H Track length on ground
|
mm
|
4040
|
|
I Crawer gauge
|
mm
|
2590
|
|
J Clearance under counter weight
|
mm
|
1197
|
|
K Ground clearance
|
mm
|
500
|
|
L Min.tail swing radius
|
mm
|
3450
|
|
Working range
|
A Max. digging height
|
mm
|
10423
|
|
B Max. dumping height
|
mm
|
7275
|
|
C Max. digging depth
|
mm
|
7139
|
|
D 8inch horizonal digging depth
|
mm
|
6954
|
|
E Max. vertical wall digging depth
|
mm
|
6545
|
|
F Max. digging reach
|
mm
|
10887
|
|
G Min. swing radius
|
mm
|
4424
|
|
Angle of arm deflection
|
Degree
|
|
& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
