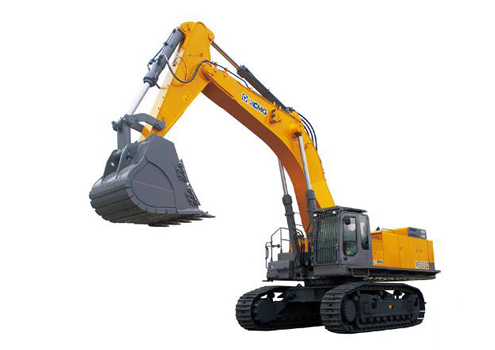

XE900C Excavator Technical Specifications:
|
Model
|
Unit
|
XE900C
|
|
Operating weight
|
kg
|
88800
|
|
Standard bucket capacity
|
m³
|
4.0~5.0
|
|
Engine
|
Engine Model
|
/
|
Cummins QSX15
|
|
Direct injection
|
/
|
√
|
|
Four strokes
|
/
|
√
|
|
Water cooling
|
/
|
√
|
|
Turbo charged
|
/
|
√
|
|
Air to air intercooler
|
/
|
√
|
|
No. of cylinders
|
/
|
6
|
|
Rated power/speed
|
kw/rpm
|
395/1800
|
|
Max. torque/speed
|
N.m
|
2365/1400
|
|
Displacement
|
L
|
15
|
|
The main performance
|
Travel speed
|
km/h
|
3.9/2.7
|
|
Swing speed
|
r/min
|
7.3
|
|
Max. gradeability
|
/
|
≥30
|
|
Ground pressure
|
kPa
|
115
|
|
Max.Bucket digging force
|
kN
|
479
|
|
Max.arm crowd force
|
kN
|
368
|
|
Max.traction force
|
kN
|
629
|
|
Hydraulic system
|
Main pump
|
/
|
?????
|
|
Rate flow of main pump
|
L/min
|
2×521
|
|
Max pressure of prime relief valve
|
MPa
|
31.4/34.3
|
|
Max pressure of travel system
|
MPa
|
34.3
|
|
Max pressure of swing system
|
MPa
|
30
|
|
Max pressure of pilot system
|
MPa
|
3.9
|
|
Oil capacity
|
Fuel tank capacity
|
L
|
1225
|
|
Hydraulic tank capacity
|
L
|
755
|
|
Engine lubrication
|
L
|
48
|
|
Overall dimensions
|
A Overall length
|
mm
|
13570
|
|
B Overall width
|
mm
|
4550
|
|
C Overall height
|
mm
|
5090
|
|
D Overall width of upperstructure
|
mm
|
3350
|
|
E Track length
|
mm
|
5840
|
|
F Overall width of undercarriage
|
mm
|
4550
|
|
G Crawer width
|
?
|
750
|
|
H Track length on ground
|
mm
|
4545
|
|
I Crawer gauge
|
mm
|
2960/3500
|
|
J Clearance under counter weight
|
mm
|
1680
|
|
K Ground clearance
|
mm
|
880
|
|
L Min.tail swing radius
|
mm
|
4700
|
|
Working range
|
A Max. digging height
|
mm
|
12060
|
|
B Max. dumping height
|
mm
|
8070
|
|
C Max. digging depth
|
mm
|
7250
|
|
D 8inch horizonal digging depth
|
mm
|
7100
|
|
E Max. vertical wall digging depth
|
mm
|
4200
|
|
F Max. digging reach
|
mm
|
12330
|
|
G Min. swing radius
|
mm
|
5200
|
|
Angle of arm deflection
|
Degree
|
|
& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
