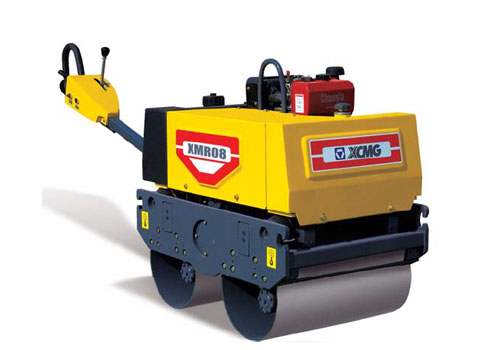

XMR08 Road Roller Technical Specifications:
|
Main technical specifications
|
unit
|
XMR08
|
|
Operating weight
|
kg
|
800
|
|
Rolling system
|
|
Tandem-type double drum
|
|
Power line
|
|
Hydraulic drive
|
|
Final drive
|
|
Gear drive
|
|
Brake system
|
N/cm
|
Hydraulic + mechnical lock
|
|
Speed
|
km/h
|
0-3.6
|
|
Gradeability
|
%
|
20
|
|
Centrifugal force
|
KN
|
15.8
|
|
Roller width
|
mm
|
708
|
|
Roller diameter
|
mm
|
400
|
|
Roller thichness
|
mm
|
8
|
|
Frequency
|
Hz
|
55
|
|
Engine model
|
|
CF186F
|
|
Rated speed
|
r/min
|
2600
|
|
Rated power
|
kw
|
5
|
|
Fuel tank capacity
|
L
|
5.5
|
|
Hydraulic tank capacity
|
L
|
16
|
|
Sprinkler capacity
|
L
|
40
|
& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
