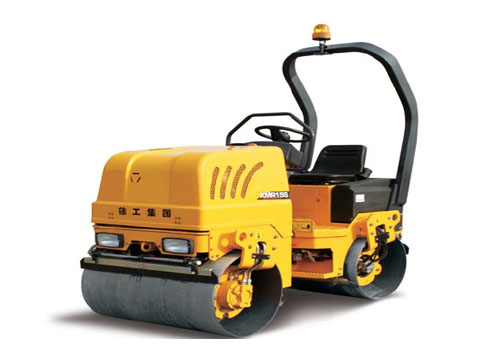

XMR15S Roller

XMR15S Road Roller Technical Specifications:

Main technical specifications

unit

XMR15S

Operating weight

kg

1600

Distributed weight in vibration drum(front/rear)

kg

800/800

Static linear load(front/rear)

N/cm

88/88

Speed

km/h

0-9

Gradeability

%

30

min turning radius (out)

mm

2700

min ground clearance

mm

250

wheel base

mm

1350

steering angle


34°

swing angle



vibration frequency

Hz

70

nominal amplitude

mm

0.4

centrifugal force

KN

17

drum diameter

mm

582

compacting width

mm

893

Engine model


perkins 403D-11

Rated speed

r/min

2600

Rated power

kw

17.3

Overall dimensions

mm

2118*977*2279

Rated oil wear

g/kw.h

235

Fuel tank capacity

L

15

Hydraulic tank capacity

L

24

Sprinkler capacity

L

110


& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
