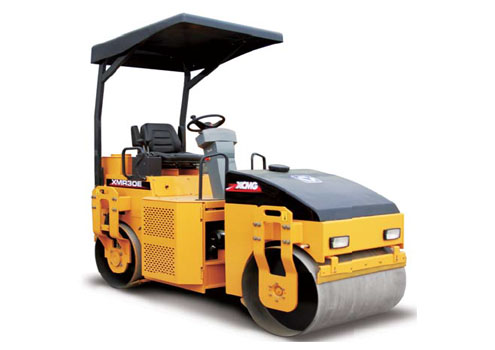

XMR30E Road Roller Technical Specifications:
|
Main technical specifications
|
unit
|
XMR30E
|
|
Operating weight
|
kg
|
3080
|
|
Distributed weight in vibration drum(front/rear)
|
kg
|
1240/1840
|
|
Static linear load(front/rear)
|
N/cm
|
121/180
|
|
Speed
|
km/h
|
0-7.5
|
|
Gradeability
|
%
|
20
|
|
min turning radius (out)
|
mm
|
4400
|
|
min ground clearance
|
mm
|
200
|
|
wheel base
|
mm
|
2150
|
|
steering angle
|
|
33
|
|
swing angle
|
|
10
|
|
vibration frequency
|
Hz
|
50
|
|
nominal amplitude
|
mm
|
0.5
|
|
centrifugal force
|
KN
|
30
|
|
drum diameter
|
mm
|
750
|
|
compacting width
|
mm
|
1000
|
|
Engine model
|
|
ZN385Q
|
|
Rated speed
|
r/min
|
2400
|
|
Rated power
|
kw
|
21
|
|
Overall dimensions
|
mm
|
2900*1200*2760
|
|
Rated oil wear
|
g/kw.h
|
240
|
|
Fuel tank capacity
|
L
|
65
|
|
Hydraulic tank capacity
|
L
|
40
|
|
Sprinkler capacity
|
L
|
180
|
& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
