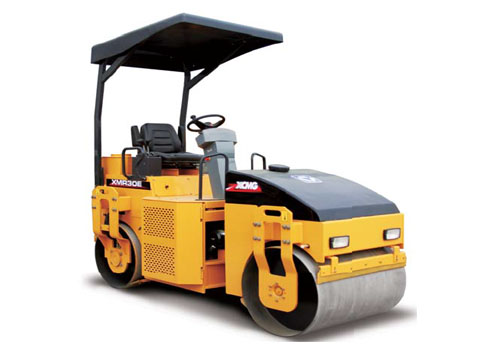

XMR30S Road Roller Technical Specifications:
|
Main technical specifications
|
unit
|
XMR30S
|
|
Operating weight
|
kg
|
3272
|
|
Static linear load(front/rear)
|
N/cm
|
125/148
|
|
Speed
|
km/h
|
0-10
|
|
Gradeability
|
%
|
30
|
|
min turning radius (L/R)
|
mm
|
2800/4400
|
|
min ground clearance
|
mm
|
320
|
|
wheel base
|
mm
|
1800
|
|
steering angle
|
|
30
|
|
swing angle
|
|
10
|
|
vibration frequency
|
Hz
|
52
|
|
vibration system max pressure
|
Mpa
|
18
|
|
steering system max pressure
|
Mpa
|
16
|
|
nominal amplitude
|
mm
|
0.4
|
|
centrifugal force
|
KN
|
27
|
|
compacting width
|
mm
|
1200
|
|
drum diameter
|
mm
|
750
|
|
Engine model
|
|
Detuz F2L2011
|
|
Rated speed
|
r/min
|
2600
|
|
Rated power
|
kw
|
22
|
|
Overall dimensions
|
mm
|
2725*1340*3000
|
|
Rated oil wear
|
g/kw.h
|
235
|
|
Fuel tank capacity
|
L
|
55
|
|
Hydraulic tank capacity
|
L
|
80
|
|
Sprinkler capacity
|
L
|
150
|
& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
