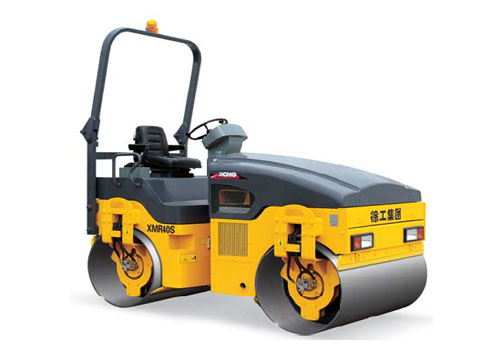

XMR40S Road Roller Technical Specifications:
|
Main technical specifications
|
unit
|
XMR40S
|
|
Operating weight
|
kg
|
4000
|
|
Static linear load(front/rear)
|
N/cm
|
154/154
|
|
Speed
|
km/h
|
0-10
|
|
Gradeability
|
%
|
30
|
|
min turning radius (L/R)
|
mm
|
2900/4200
|
|
min ground clearance
|
mm
|
240
|
|
wheel base
|
mm
|
1900
|
|
steering angle
|
|
30
|
|
swing angle
|
|
10
|
|
vibration frequency
|
Hz
|
60
|
|
vibration system max pressure
|
Mpa
|
18
|
|
steering system max pressure
|
Mpa
|
16
|
|
nominal amplitude
|
mm
|
0.4
|
|
centrifugal force
|
KN
|
40
|
|
compacting width
|
mm
|
1300
|
|
drum diameter
|
mm
|
800
|
|
Engine model
|
|
Detuz F3L2011
|
|
Rated speed
|
r/min
|
2600
|
|
Rated power
|
kw
|
33.9
|
|
Overall dimensions
|
mm
|
2860*1425*2995
|
|
Rated oil wear
|
g/kw.h
|
230
|
|
Fuel tank capacity
|
L
|
67
|
|
Hydraulic tank capacity
|
L
|
80
|
|
Sprinkler capacity
|
L
|
170
|
& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
