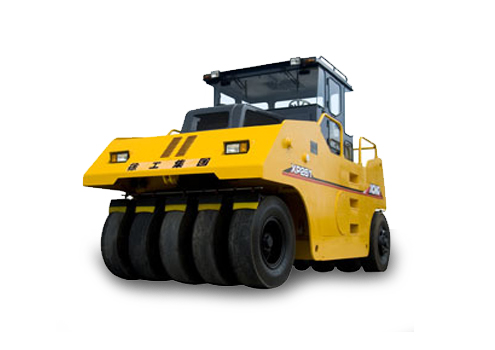

XP163 tyre compactor is the landmark of 3 series products developed on the basis of 2 series products. It leads the development of Chinese tyre compactor due to its high start, high technique, high performance, and high quality. The machine features beautiful appearance, driving comfort, simple operation, excellent performance, safety and reliability, and convenient maintenance. It can be applied in the construction of asphalt road, base layer, hypo-base layer, and fill construction. It is a necessary compact equipment for road construction and water conservancy construction, especially for the high-grade highways.
& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
|
Model
|
Unit
|
|
|
Min. working weight
|
kg
|
11100
|
|
Max. working weight
|
kg
|
16000
|
|
Ground pressure
|
kPa
|
200-400
|
|
Travel speed
|
km/h
|
|
|
Speed I
|
4.2
|
|
Speed II
|
8.2
|
|
Speed III
|
17.4
|
|
Reverse speed I
|
4.17
|
|
Reverse speed II
|
8.2
|
|
Theoretical gradeability
|
%
|
20
|
|
Min. external turning radius
|
mm
|
7230
|
|
Min. ground clearance
|
mm
|
250
|
|
Compaction width
|
mm
|
2055
|
|
Roller overlap amount
|
mm
|
30
|
|
Tyre specification
|
|
9.00-20-12PR
|
|
Amount
|
|
Front 4 Rear 5
|
|
Engine model
|
|
YC4A125Z
|
|
Type
|
|
Water cooling, pressurizing
|
|
Rated power
|
kw @2200 r/min
|
92
|
|
Engine oil consumption
|
g.kw/h
|
≤230
|
|
Hydraulic oil tank capacity
|
L
|
60
|
|
Diesel oil tank capacity
|
L
|
130
|
|
Overall length
|
mm
|
4715
|
|
Overall width
|
mm
|
2055
|
|
Overall height
|
mm
|
3258
|
