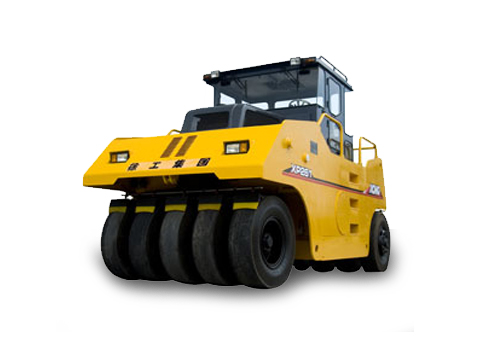

XP203 Roller

XP203 hydraulic pneumatic tyre roller is the landmark of 3 series products developed on the basis of 2 series products. It leads the development of Chinese tyre compactor due to its high start, high technique, high performance, and high quality. The machine features beautiful appearance, driving comfort, simple operation, excellent performance, safety and reliability, and convenient maintenance. It can be applied in the construction of asphalt road, base layer, hypo-base layer, and fill construction. It is a necessary compact equipment for road construction and water conservancy construction, especially for the high-grade highways.
& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine

Model
Unit
XP203
Min. working weight
kg
11740
Max. working weight
kg
20000
Ground pressure
kPa
Travel speed
km/h
200-400
Speed I
4.2
Speed II
8.2
Speed III
17.4
Reverse speed I
4.17
Reverse speed II
8.2
Theoretical gradeability
%
20
Min. turning external radius
mm
7330
Min. ground clearance
mm
250
Compaction width
mm
2250
Roller overlap amount
mm
45
Tyre specification
11.00-20-16PR
Amount
FrontFront 4 Rear rear 5
Engine model
YC4A125Z
Type
Water cooling, pressurizing
Rated power
kw @2200 r/min
92
Engine oil consumption
g.kw/h
≤230
Hydraulic oil tank capacity
L
60
Diesel oil tank capacity
L
150
Overall length
mm
4770
Overall width
mm
2250
Overall height
mm
3285
