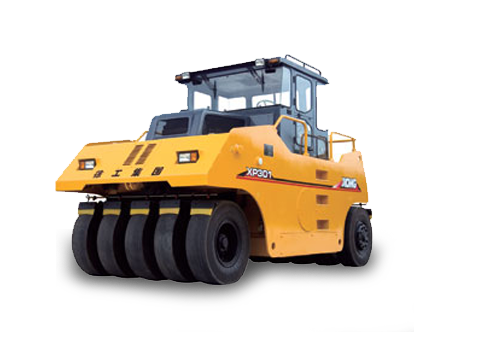

Road Roller Technical Specifications:
|
Model
|
Unit
|
XP301
|
|
Min. working weight
|
kg
|
14500
|
|
Max. working weight
|
kg
|
30000
|
|
Axle load,wheels
|
kg
|
2900
|
|
Static linear load
|
kg
|
12600
|
|
Theoretical gradeability
|
%
|
20
|
|
Min. turning external radius
|
mm
|
9000
|
|
Min. ground clearance
|
mm
|
290
|
|
Tyre overlap amount
|
mm
|
50
|
|
Front wheel swing range
|
mm
|
±45
|
|
Compaction width
|
mm
|
2750
|
|
Ground pressure
|
kPa
|
260~450
|
|
Wheel base
|
mm
|
3840
|
|
Travel speed
|
km/h
|
0~8
|
|
|
km/h
|
0~16
|
|
Tyre specification
|
|
11.00-20
|
|
Tyre tread
|
|
Smooth
|
|
Tyre amount
|
|
Front 5 rear 6
|
|
Engine model
|
|
SC8D180F2B1
|
|
Rated speed
|
r/min
|
2000
|
|
Rated power
|
kw
|
132
|
|
Engine oil consumption
|
g/kW•h
|
232
|
|
Water tank capacity
|
L
|
2900
|
|
Hydraulic oil tank capacity
|
L
|
100
|
|
Fuel tank capacity
|
L
|
180
|
& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
