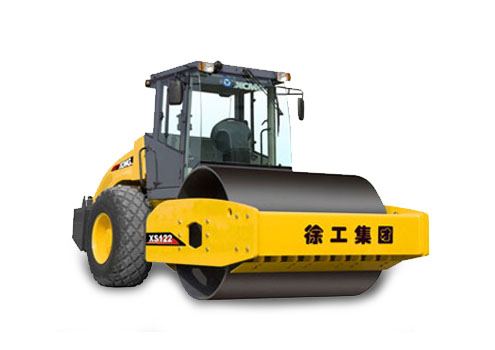

XS122 is a medium-sized hydraulic vibratory compactor developed on the basis of XS120 with better performance and appearance. Representing XCMG hydraulic vibratory compactors, the compacting performance, driving performance, operating performance, reliability, and maintenance performance represent the highest level of domestic compactors.
XS122 Road Roller Technical Specifications:
|
Type
|
Unit
|
Specifications
|
|
Operating weight
|
kg
|
12000
|
|
Weight on front drum
|
kg
|
6700
|
|
Static linear load
|
N/cm
|
308
|
|
Speed range
|
km/h
|
0~10.4
|
|
Theoretical gradeability
|
%
|
45
|
|
Min. external turning radius
|
mm
|
6800
|
|
Steering angle
|
°
|
±30
|
|
Oscillating angle
|
°
|
±10
|
|
Vibration frequency(L/H)
|
Hz
|
30/35
|
|
Nominal amplitude(H/L)
|
mm
|
1.80/0.9
|
|
Excitation force(H/L)
|
kN
|
290/180
|
|
Drum diameter
|
mm
|
1523
|
|
Drum width
|
mm
|
2130
|
|
Engine model
|
|
Cummins 4B3.9
|
|
Type
|
|
Water cooled, turbo-charged,air-air intercooling
|
|
Rated power @2200r/min
|
kW
|
93
|
& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
