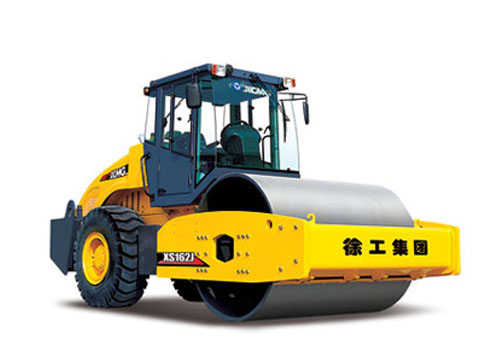

XS162J vibratory compactor is a kind of heavy duty self-propelled vibratory compactor. It can effectively compact various soil layers and rock fill, and can be applied to the constructions of modern freeways, airports, embankment fill, ports, dams, railways, mines, etc.
XS162J Road Roller Technical Specifications:
|
Model
|
Unit
|
XS162J
|
|
Operating weight
|
kg
|
16000
|
|
Weight on front drum
|
kg
|
7700
|
|
Static linear pressure
|
N/cm
|
362
|
|
Speed range
|
km/h
|
|
|
Speed I
|
|
2.54
|
|
Speed II
|
|
4.97
|
|
Speed III
|
|
10.51
|
|
Theoretical gradeability
|
%
|
30
|
|
Min. external turning radius
|
mm
|
6500
|
|
Steering angle
|
°
|
±33
|
|
Oscillating angle
|
°
|
±11
|
|
Vibration frequency
|
Hz
|
28
|
|
Nominal amplitude (high/low)
|
mm
|
1.9/0.95
|
|
Excitation force (high/low amplitude)
|
kN
|
290/145
|
|
Engine model
|
|
SC8D156.2G2B1
|
|
Type
|
Water cooled, pressurized
|
Water cooled, pressurized
|
|
Max. power
|
kW
|
115@1800r/min
|
|
Engine oil consumption
|
g/kW.h
|
223
|
|
Hydraulic oil tank capacity
|
L
|
170
|
|
Fuel tank capacity
|
L
|
240
|
& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
