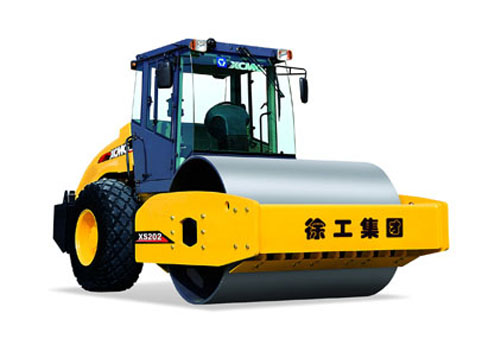

XS202 Roller

XS202 Road Roller Technical Specifications:

Type

Unit

XS202

Operating weight

kg

20000

Load on front drum

kg

13500

Load on rear wheels

kg

6500

Drum width

mm

2130

Static linear load

N/cm

621

Vibration frequency(Low/High)

Hz

28/33

Nominal amplitude(High/Low)

mm

1.86/0.93

Excitation force(High/Low)

KN

370/255

Travel speed

km/h

0~10

Steering angle

°

±33

Swing angle

°

±10

Theoretical gradeability

%

50

Min. turning radius

mm

6500

Engine model


Cummins B5.9

Engine power

kw

132

Rated engine speed

r/min

2200

Engine oil consumption

g/kW.h

232

Hydraulic oil tank capacity

L

240

Fuel tank capacity

L

240


& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
