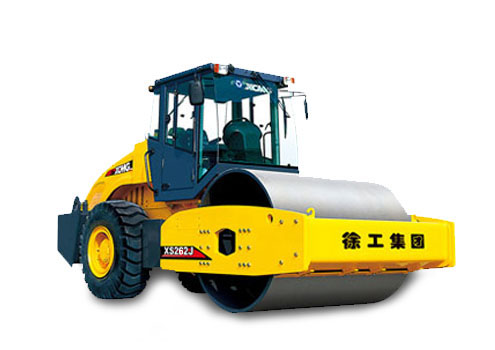

The XS262J is a super heavy-duty vibratory roller with mechanical drive designed and built to offer unrivaled performance. Representing XCMG’s new generation of mechanical drive vibratory rollers, the machine sets new standards for operation, propulsion, compaction, reliability and serviceability in the industry.
& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
|
Item
|
Unit
|
XS262J
|
|
Operating weight
|
kg
|
26000
|
|
Weight on front drum
|
kg
|
13000
|
|
Static linear load
|
N/cm
|
582
|
|
Speed range
|
km/h
|
|
|
Speed I
|
|
2.52
|
|
Speed II
|
|
4.95
|
|
Speed III
|
|
8.1
|
|
Theoretical gradeability
|
%
|
35
|
|
Min. external turning radius
|
mm
|
6800
|
|
Steering angle
|
°
|
±33
|
|
Oscillating angle
|
°
|
±10
|
|
Vibration frequency (high/low)
|
Hz
|
32/27
|
|
Nominal amplitude (high/low)
|
mm
|
1.9/0.95
|
|
Excitation force (high/low amplitude)
|
kN
|
405/290
|
|
Drum diameter
|
mm
|
1600
|
|
Drum width
|
mm
|
2170
|
|
Engine model
|
|
Shanghai Diesel Engine SC8D190.2G2
|
|
Rated power @2000 r/min
|
kW
|
140
|
|
Engine oil consumption
|
g/kW.h
|
223
|
|
Hydraulic oil tank capacity
|
L
|
170
|
|
Fuel tank capacity
|
L
|
320
|
