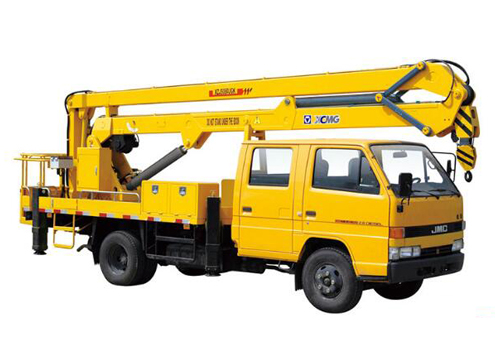

Folding Jib Aerial Working Vehicle
| Vehicle Model |
XZJ5060JGK |
| Max Operating Height |
17.3m |
| Max Operating Radius |
8.3m |
| Rated Load of Platform |
200Kg |
| Slewing Angle |
±360° |
| Max Operating Radius on Maximum Operating Height |
2.7m |
| Max Operating Height on Maximum Operating Radius |
9.6m |
| Max Lifting Capacity |
2000Kg |
| Max Lifting Height |
9.2m |
| Dimension in Driving( L × W × H) |
7660×2000×2920(mm) |
| Chassis Model |
JX1060TSG23 |
| Engine Model |
JX493ZLQ3 |
| Engine Power |
85kw |
| Passengers |
2+3 |
