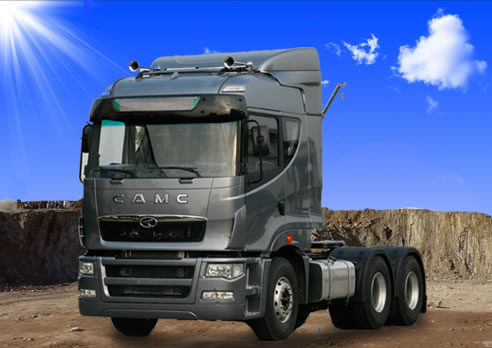

(Xingkaima Series): Lightweight Principle of CAMC Heavy Truck Tractor 6×4
Under the condition that the performance, bearing capacity and security of truck are ensured, the lightweight is realized by optimizing the design structure, applying new materials and technologies and adopting the lightweight assembly.
Main Technical Performance and Specification Schedule of CAMC Heavy-duty Tractor
|
Vehicle Model
|
HN4250HP40C2M3/
|
|
Driving Model
|
6×4
|
|
Cab Model
|
H08 High Roof
|
|
Overall Length(mm)
|
6980
|
|
Overall (mm)
|
2496
|
|
Overall (mm)
|
3930
|
|
Engine Model
|
ISM420E30 /ISME440 20
|
|
Engine Brand
|
CUMMINS
|
|
Gearbox Model
|
ZF16S1950
|
|
Frontal Axle Model
|
CAMC
|
|
Driving Axle Model/Ratio
|
CAMC/4.7
|
|
Tire Specifications
|
12R22.5
|
|
Wheelbase(mm)
|
3150+1450/3200+1350
|
|
Front Suspension(mm)
|
1550
|
|
Rear Suspension(mm)
|
840
|
|
Tread(F/R)(mm)
|
2065/1860/1860
|
|
Kerb mass(kg)
|
8805
|
|
Permitted Front Axle Load(kg)
|
7000
|
|
Permitted Rear Axle Load(kg)
|
18000
|
|
Minimum ground clearance(mm) under rear axle
|
257
|
|
Approaching angle(°)
|
14
|
|
Departure angle(°)
|
24
|
|
Minimum turning diameter(m)
|
8
|
Due to improvements made to the product, data herein is subject to change without notice.
Different outfits are provided for the different configurations of the motor vehicles.
Affected by the reproduction conditions, the pictures and data differ somewhat from the actual motor vehicles.
CAMC reserves the rights to make final explanations.
