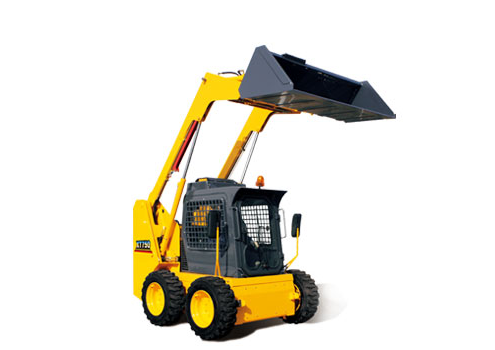

The IOT module of hydraulic component applies to construction and rescue equipment under harsh, complex and dangerous working conditions. With technologies of wireless transmission, ad hoc network and composite transmission, the module achieves real-time data storage and remote monitoring of hydraulic component and assists mainframe to proceed real-time and remote monitoring of working condition. It can be used for monitoring product life cycle parameter and collecting data, and will be applied to fault diagnosis, life prediction and remote control.
Ad hoc network automatically identifies legitimate network device and networking with maximum connection up to 256 sets.
IOT supports wireless communications such as ZigBee, WIFI.
Cost decreases 30%~40% by comparing with other communications.
Low power consumption, with variety of power supplies.
Simple transmission signal with strong anti-interference ability.
AES128 encryption algorithm provides high security.

主要参数	规格	单位
Main parameters	Specification	Unit
采样频率	1K	Hz
Sampling frequency
无线传输最大距离	50	m
Maximum distance of wireless transmission
信号传输频率	≤10	Hz
Signal transmission frequency
信号类型	4-20mA 、0-10V、CAN
Signal type
工作温度	-30~+100	℃
Working temperature
工作电压	12~36	V DC
Working voltage
适用范围	适用于单节点1~8路模拟信号
Range of application	Applies to no.1~8 single-node analog signal
