Product Name
|

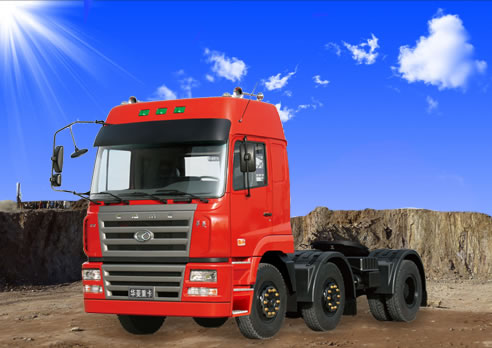

Tractor Truck
|
|
|
Product Model
|
HN4221P38B8M/HN422P34B5M3
|
|
|
Manufacturer
|
Anhui Hualing Automobile Co.,Ltd
|
|
|
Place of Origin
|
Maan shan, Anhui, China
|
|
|
Kerb mass
|
7.8ton
|
|
|
Rated Payload
|
38ton
|
|
|
Drive Type
|
Left-Hand(Optional RHD)
|
|
|
Drive Model
|
6×2
|
|
|
Vehicle Body Color
|
Red(optional)
|
|
|
Overall Dimension (L x W x H)mm
|
7090x2495x3600(3100 for flat-roof cabin)
|
|
|
Engine
|
Brand
|
CUMMINS/WEICHAI
|
|
Model
|
L345 20/WP10.340E32
|
|
|
Max. Power (kw/r/min)
|
254/2200//250/2220
|
|
|
Displacement
|
8900ml/9726ml
|
|
|
Emission Standard
|
Euro II
|
|
|
Clutch
|
Model
|
Φ430 diaphragm spring
|
|
Transmission
|
Brand
|
FAST GEAR
|
|
Model
|
9JS150T (9-speed & 1-reverse)
|
|
|
Type
|
twin countershaft; all synchronizer
|
|
|
The Number of Axles
|
3
|
|
|
Rear Axle(drive axle)-Model
|
13T
|
|
|
Front Axle-Model
|
7.5T
|
|
|
Cabin type
|
European high-roof (optional CF,EF,CH)
|
|
|
Cabin
|
With A/C, Radio, Bunk
|
|
|
Brake System
|
Full air brake with exhaust brake (optional ABS)
|
|
|
Steering System
|
HITACHI
|
|
|
Wheelbase (mm)
|
1850+2850
|
|
|
Wheel/Tire
|
Type
|
Bias/Radial tube/Radial tubeless
|
|
Model(optional)
|
11.00-20/11.00R20/11R22.5
12.00-20/12.00R20/12R22.5
|
|
|
Tire number
|
8+1
|
|
|
Fuel Tank
|
Volume(L)
|
380 (optional 500L)
|
|
The fifth wheel (Saddle)
|
JOST 50# /2 inches ;(optional 90#/3.5inches)
|
|
|
The working platform
|
With
|
|
|
Front overhang/Rear overhang(mm)
|
1370/1020
|
|
|
Approach/Departure Angle(°)
|
24/28
|
|
|
No. of steel spring(front/rear)
|
9/9/9+6
|
|
|
Max. Speed (km/h)
|
90
|
|
