Technical Specifications

Item		Parameter
Outline dimensions (Length´ ´)mm		12310×2500×3990
Fuel type		Diesel
Engine emission standard		Euro III
Displacement/Powerml/kW		12100/279
Steering type		Steering wheel
No. of axle		4
Wheel basemm		1793+4407+1370
No. of spring leaf (front/rear)		2+3/9
Tire		12.00R20
Track (front/rear)mm		2034/1831
No. of tire (exclude spare tire)		12
Total vehicle weightkg		36500
Crew in cab		2
Approach angle/Departure angle		21°/12°
Front overhang /Rear overhangmm		1360/3380
Max. speedkm/h		94
Min. ground clearancemm		270
Max. grade-ability		38%
Fuel consumption per 100kmL/100km		40
Chassis	Model	FM12
	Grade	?
	Manufacturer	VOLVO
Engine	Model	D12
	Manufacturer	VOLVO

& Due to improvements made to the product, data herein is subject to change without notice.

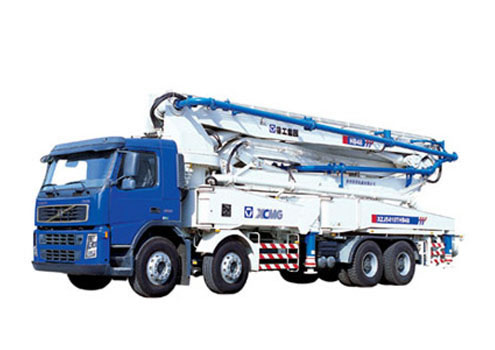

& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
