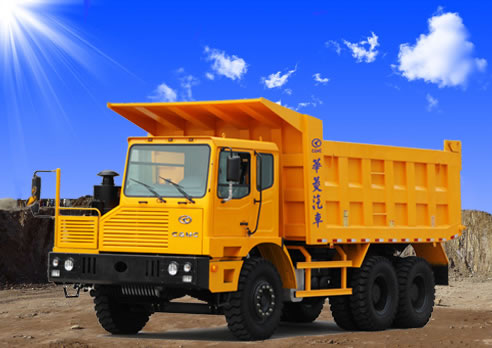

Mining dump truck
Cabin:European style,interior upgrade entirely,cabin air spring suspension system,the safety air chamber for drivers. The steering wheel adjustable for different people. The big power A/C system can fulfill the rough working conditions. The artomatic and hydraulic tilting system is for easy maintenance.

Emgine: Yuchai Yc6M375-20 diesel engine is for domestic market, the new generation four-valve diesel engine developed with European AVL, the performance improved a lot, powerful,reliable, efficient, energy saved, low noise and environmental protection.(Weichai WD615.44 or Hangfa WD615.47 is optional)

Technical Specifications

Model
AH3501
Engine model
WD12.336
WD615.44
WD615.47
Rated power/speed(KW/ r/min)
247/2200
235/2200
273/2200
Engine Power
11350/1300^?1600
1250/1400^?1600
1160/1300^?1600
Overall dimension(L×W×H)(mm)
8720×3130×3690
Deck dimension(L×W×H)(mm)
5600×2950×1600
Drive type
6×4
Wheelbase(mm)
3800+1450
Min. grornd clearance(mm)
360
Approaching angle/Departure angle(°)
31/51
GVW(kg)
50000
Kerb mass(kg)
20000
Payload(kg)
30000
Max.speed(km/h)
50
Front/drive axle
Integral casting i beam frame./high tensile integral casting axle(ratio:1.39
Tire
13.00-25
Max. grade ability(%)
40
Hoisting time(%)
≤25
Max.inclination(°)
50
& Due to improvements made to the product, data herein is subject to change without notice.
& Different outfits are provided for the different configurations of the motor vehicles.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual motor vehicles.
& CAMC reserves the rights to make final explanations.
