Technical Specifications

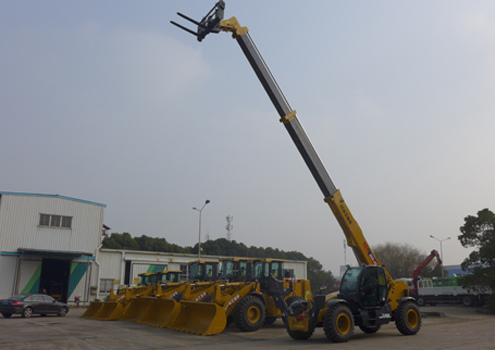

XCMG XC6-3514 telescopic handlers Main Parameters:

Item		Unit	XC6-3514
Operation weight		Kg	10500
Engine power		Kw	70/Deutz
Max. payload capacity		kg	3500
Payload at max extension		Kg	635
Max extension		mm	9460
Max outreach		mm	600
Load center distance		mm	-0.054794521
Swing angle		°	90
Fork decline angle angle of frame	Forwards	°	\
	Backwards	°	18
Max traction force		Kn	48
Max Gradeability		°	28
Max travel speed		km/h	28
Turning radius		mm	4230
Max Brake distance		m	6
Total length		mm	6290
Total		mm	2600
Total		mm	2500
Wheel base		mm	3250
Wheel tread		mm	1970
Fork length		mm	1200

& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
