Technical Specifications

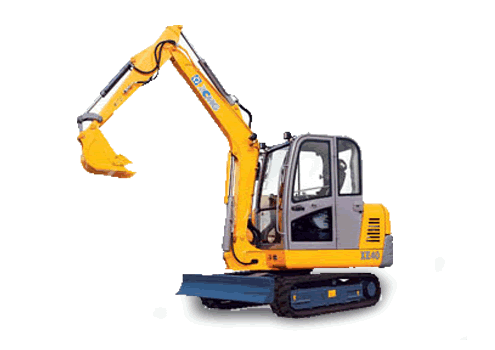

Model			XE40C
Operating weight		kg	4050
Standard bucket capacity		m³	0.14
Engine	Engine Model	/	4TNV88
	Direct injection	/	√
	Four strokes	/	√
	Water cooling	/	√
	Turbo charged	/	×
	Air to air intercooler	/	×
	No. of cylinders	/	4
	Rated power/speed	kw/rpm	27.1/2200
	Max. torque/speed	N.m	142/1320
	Displacement	L	2.19
The main performance	Travel speed	km/h	4.2/2.6
	Swing speed	r/min	13.5
	Max. gradeability	/	30
	Ground pressure	kPa	36.3
	Max.Bucket digging force	kN	23.2
	Max.arm crowd force	kN	19.3
	Max.traction force		33.9
Hydraulic system	Main pump	/	Japan nachi
	Rate flow of main pump	L/min	1×110+11
	Max pressure of prime relief valve	MPa	21
	Max pressure of travel system	MPa	21
	Max pressure of swing system	MPa	21
	Max pressure of pilot system	MPa	3.9
	Fuel tank capacity	L	65
Oil capacity	Hydraulic tank capacity	L	70
	Engine lubrication	L	7.4
	A Overall length	mm	5455
Overall dimensions	B Overall	mm	1650
	C Overall	mm	2440
	D Overall of upperstructure	mm	1500
	E Track length	mm	2198
	F Overall of undercarriage	mm	1635
	G crawer	mm	300
	H Dozer black(/)	mm	1650×300
	I Tumbler distance	mm	1721
	J Crawer gauge	mm	1335
	K Clearance under counter weight	mm	578
	L Ground clearance	mm	350
	M Min.tail swing radius	mm	1480
	A Max. digging	mm	5320
Working range	B Max. dumping	mm	3700
	C Max. digging depth	mm	3600
	E Max. vertical wall digging depth	mm	2250
	F Max. digging reach	mm	5810
	G Min. swing radius	mm	2385
	H Max.dozer lifting	mm	255
	I Max.dozer cutting depth	mm	375
	Angle of arm deflection	Degree	/

& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
