Product Name
|

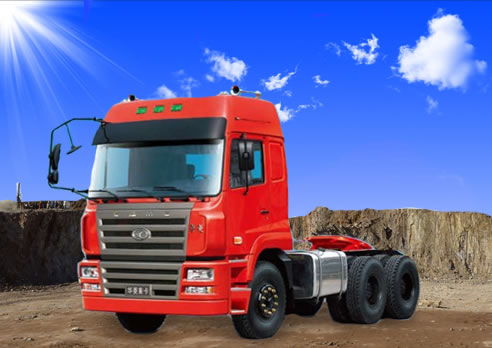

Tractor Truck
|
|
|
Product Model
|
HN4250G37CLM3
|
|
|
Place of Origin
|
Maan shan, Anhui, China
|
|
|
Kerb mass
|
8.8ton
|
|
|
Rated Payload
|
100ton
|
|
|
Drive Type
|
Left-Hand(optional RHD)
|
|
|
Drive Model
|
6x4
|
|
|
Vehicle Body Color
|
Yellow(optional)
|
|
|
Overall Dimension (LxWxH)mm
|
6750x2495x3300
|
|
|
Engine
|
Brand
|
DONGFENG CUMMINS
|
|
Model
|
L375 30
|
|
|
Max. Power (kw/r/min)
|
276/2200
|
|
|
Max. T Qrgue(Nm/r/min)
|
1480/1400
|
|
|
No. of cylinder
|
6
|
|
|
Bore x Stroke(mm)
|
114 x145
|
|
|
Displacement
|
8900ml
|
|
|
Control Type
|
Mechanical
|
|
|
Air Cleaner
|
Dry Paper Element
|
|
|
Emission Standard
|
Euro II
|
|
|
Clutch
|
Type
|
Hydraulic control with air assisted
|
|
Plate diameter
|
dry single plate with diaphragm
outside diameter: 430 mm
|
|
|
Transmission
|
Brand
|
FAST GEAR
|
|
Model
|
12JS160T (12-speed & 2-reverse)
|
|
|
Type
|
Mechanical
|
|
|
The Number of Axles
|
3
|
|
|
Rear Axle(drive axle)-Load
|
2x16000kg
|
|
|
Front Axle-Load
|
7500kg
|
|
|
Cabin type
|
Classic flat-roof (optional EF,CH,EH)
|
|
|
Cabin
|
With A/C, Radio, MP3,Bunk
|
|
|
Brake System
|
Service
|
Full air brake dual ciruit
|
|
Parking
|
Spring actugtor at rear wheels
|
|
|
Auxiliary
|
Exhaust break
|
|
|
Steering System
|
recirculation ball with integral power
assisted by oil
|
|
|
Wheelbase (mm)
|
3,200+1350
|
|
|
Wheel/Tire
|
Type
|
Bias/Radial tube/Radial tubeless
|
|
Model(optional)
|
11.00-20/11.00R20/11R22.5
12.00-20/12.00R20/12R22.5
|
|
|
Tire number
|
10+1
|
|
|
Fuel Tank
|
Volume(L)
|
380
|
|
The working platform
|
With
|
|
|
Diversion cover
|
Optional
|
|
|
Front overhang/Rear overhang(mm)
|
1370/1020
|
|
|
Approach/Departure Angle(°)
|
24/23
|
|
|
No. of steel spring(front/rear)
|
9/9
|
|
|
Max. Speed (km/h)
|
90
|
|
