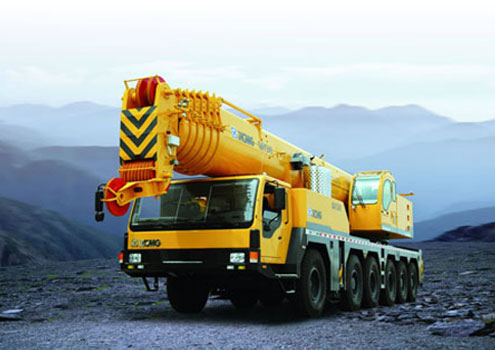

QAY 240 is another new all terrain product developed by our company through extensive market research and technical demonstration. It inherits the successful experience, and adopts new materials, new technologies, and the most advanced steed structure design and computer control technique. The main hydraulic parts and load bearing materials adopts international parts and components, effectively improving the product’s performance and reliability. The application of hydropneumatic suspension all terrain chassis, electronic proportional control system, limit load control variable hydraulic system, U jib technique greatly improving the performance and grade of the machine. The machine has modern design, compact and reasonable layout, and excellent travel and lifting performance. QAY240 which represented the highest design level at that time attended the 2007 Munich Bauma Exhibition. It is the first time for the Chinese high-level crane shown on the international stage, extending the domestic crane’s influence in the world.

Technical Specifications

Classification	Item		Unit	QAY240
Dimension	Overall length		mm	15918
	Overall		mm	3080
	Overall		mm	4000
Weight	Overall weight in travel		kg	72000
	Axle load	Axle 1, 2	kg	12000
		Axle 3, 4	kg	12000
		Axle 5	kg	12000
Power	Superstructure engine	Rated power	kw/(r/min)	194/2100
		Rated torque	N.m/(r/min)	1050/1400
		Rated speed	r/min	2100
	Carrier engine	Rated power	kw/(r/min)	420/1800
		Rated torque	N.m/(r/min)	2700/1080
		Rated speed	r/min	1800
	Max. travel speed		km/h	71
	Min. turning diameter		m	24
	Min. ground clearance		mm	280
	Approach angle		°	25
	Departure angle		°	18­
	Braking distance (at 30km/h)		m	≤10
	Max. grade ability		%	48
	Fuel consumption for 100km		l	90

Classification	Item			Unit	QAY240
Main performance	Max. rated total lifting capacity			t	240
	Min. rated working radius			m	3
	Turning radius at turntable tail (counterweight)			mm	480
	Max. lifting torque	Base boom		kN.m	7797
		Fully extended boom		kN.m	2940
	Outrigger span	Longitudinal/lateral		m	9.625/8.7(6.5)
	Lifting	Base boom		m	12.6
		Fully extended boom		m	65.6
		Fully extended boom+ jib		m	85.7
	Boom length	Base boom		m	13.2
		Fully extended boom		m	67
		Fully extended boom+ jib		m	87
Working speed	Boom luffing	Boom raising		m	65
	Boom extension/retraction	Full extension/full retraction		m	650
	Max. swing speed			r/min	1.6
	Outrigger telescoping time	Outrigger beam	Extension	S	50
			Retraction	S	40
		Outrigger jack	Extension	S	50
			Retraction	S	45
	Lifting speed (single rope, layer 4)	Main winch	No load	m/min	115
		Aux. winch	No load	m/min	118

& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
