Technical Specifications

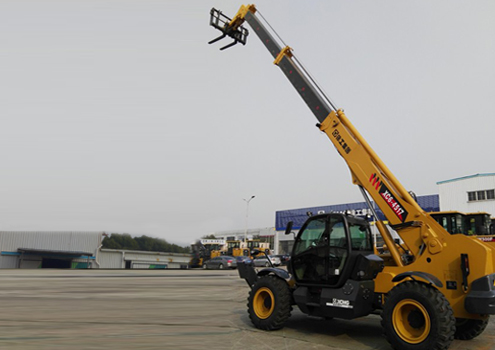

XCMG XC6-4517 telescopic handlers Main Parameters:

Item		Unit	XC6-4517
Operation weight		Kg	13500
Engine power		Kw	82(cummins)
Max. payload capacity		kg	4500
Payload at max extension		Kg	490
Max extension		mm	12600
Max outreach		mm	600
Load center distance		mm	-0.054794521
Swing angle		°	90
Fork decline angle angle of frame	Forwards	°	\
	Backwards	°	18
Max traction force		Kn	73
Max Gradeability		°	33
Max travel speed		km/h	35
Turning radius		mm	4860
Max Brake distance		m	10
Total length		mm	6890
Total		mm	2815
Total		mm	2500
Wheel base		mm	3900
Wheel tread		mm	2060
Fork length		mm	1200

& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
