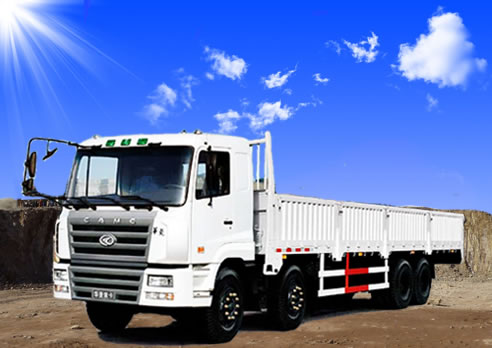

CAMC Heavy Truck Series 8×4 Cargo Truck

Characteristics

1.CAMC 8×4 cargo truck is characterized by large carrying capacity, economical price and cost-effective performance.
2.This heavy duty truck also features high reliability, high load capacity and high comfortableness.
3.Our 8×4 cargo trucks own the advantages of compact structure, elegant line, broad vision, big door opening angle and cab tilting angle, easy maintenance, and so on.
4.This heavy duty truck is featured with reasonable arrangement and the major assembly works coordinately and reliably, making the vehicle enjoy good performance in power, safety and other aspects.

Technical Parameters

Product Name
Cargo Truck
Product Model
HN1310P29D6M3
Place of Origin
Maanshan,Anhui,China
G.V.W
31 ton
Kerb mass
12.8 ton
Payload
18 ton
Drive Type
Left Hand (optional RHD)
Drive Model
8×4
Engine
Brand
CUMMINS
Model
L340 30
Max. Power (kw/r/min)
250/2200
Displacement
8300ml
Emission Standard
Euro II
Clutch
Model
Φ430 diaphragm spring
Transmission
Brand
FAST GEAR
Model
RT11509C
Rear Axle(drive axle)-load
13 ton x2
Front Axle-load
7.5 ton x 2
Cabin Type
European flat roof (optional CF,CH,EH)
Cabin
With A/C, Radio, Bunk
Steering System
HITACHI
Wheelbase (mm)
1850+4605+1350
Wheel/Tire
Type
Bias/Radial
Model
11.00-20/11.00R20/12.00-20/12.00R20
Tire number
12+1
Oil Tank
Volume(L)
320
Dimensions
(L×W×H)
Overall (mm)
11980x2495x3100
Body interior (mm)
9600x2300x800
Front overhang/Rear overhang(mm)
1370/2845
Approach/Departure Angle(°)
24/23
No. of steel spring(front/rear)
9/9/12
Max. Speed (km/h)
90
Remarks: Due to improvements made to the product, data herein is subject to change without notice.Different outfits are provided for the different configurations of the motor vehicles.Affected by the reproduction conditions, the pictures and data differ somewhat from the actual motor vehicles.CAMC reserves the rights to make final explanations.
