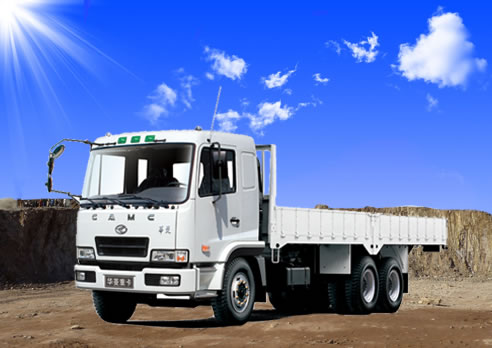

CAMC Star Series 6×4 cargo truck

Features

1. Its design is flexible, convenient and economic.
2. CAMC 6×4 cargo truck enjoys the advantages of compact structure, elegant line, wide vision, big door opening angle and cab tilting angle, easy maintenance, and so on.
3. This flatbed truck is also famous for its ergonomically designed driver’s space that harmoniously combines functionality with efficiency.

Technical Parameters

Product Name
Cargo Truck
Product Model
HN1240P29E2M3
Place of Origin
Maanshan,Anhui,China
G.V.W
25 ton
Kerb mass
11.5 ton
Payload
13.5 ton
Drive Type
Left Hand (optional RHD)
Drive Model
6×4
Engine
Brand
CUMMINS
Model
L290 30
Max. Power (kw/r/min)
213/2200
Displacement
8300ml
Emission Standard
Euro II
Clutch
Model
Φ430 diaphragm spring
Transmission
Brand
FAST GEAR
Model
9JS119
Rear Axle(drive axle)-load
13 tonx2
Front Axle-load
7.5 ton
Cabin Type
European flat roof (optional CF,CH,EH)
Cabin
With A/C, Radio, Bunk
Steering System
HITACHI
Wheelbase (mm)
5220+1350
Wheel/Tire
Type
Bias/Radial
Model
11.00-20/11.00R20/12.00-20/12.00R20
Tire number
10+1
Oil Tank
Volume(L)
320
Dimensions(L×W×H)
Overall (mm)
11980x2495x3040
Body interior (mm)
8700x2300x800
Front overhang/Rear overhang(mm)
1370/3450
Approach/Departure Angle(°)
24/22
No. of steel spring(front/rear)
9/12
Max. Speed (km/h)
90

Remarks: Due to improvements made to the product, data herein is subject to change without notice.Different outfits are provided for the different configurations of the motor vehicles.Affected by the reproduction conditions, the pictures and data differ somewhat from the actual motor vehicles.CAMC reserves the rights to make final explanations
