Technical Specifications

Basic specification
Engine model	6CTAA8.3 D6114
Rated power/speed	138kW/2200 140kW/2300rpm
Dimension(LxWxH)	8900×2625×3470mm
Operating weight(Standard)	15400kg
Performance specification
Travelling speed ,forward	5,8,11,19,23,38 km/h
Travelling speed ,reverse	5,11,23 km/h
Tractive force(f=0.75)	79KN
Max. gradeability	20%
Tire inflation pressure	260 kPa
Working hydraulic pressure	16 MPa
Transmission pressure	1.3~1.8MPa
Operating specification
Max. steering angle of front wheels	±50°
Max. lean angle of front wheels	±17°
Max. oscillation angle of front axle	±15°
Max. oscillation angle of balance box	15
Frame articulation angle	±27°
Min. turning radius using articulation	7.3m

& Due to improvements made to the product, data herein is subject to change without notice.

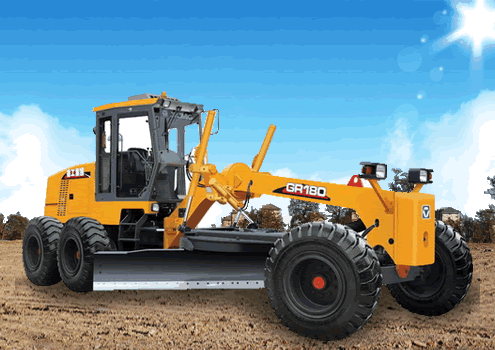

& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
