Technical Specifications

ITEM	UNIT	SD16
L×W×H (Ripper not included)	mm	5140×3388×3032
Operating weight (Ripper not included)	t	17
Engine	-	Shangchai SC11CB184G2B1/ Weichai WD10G178E25
Rated power	kW/rpm	120/1850
Gradeability	°	30
Blade type	-	Straight tilt blade U blade Angle blade
Blade	mm	Straight tilt blade 3388×1149 U blade 3556×1120 Angle blade 3970×1040
Dozing capacity	m3	Straight tilt blade 4.5 U blade 5 Angle blade 4.3
Ma× drop below ground of blade	mm	540
Lift of blade	mm	1095
Ripper type	-	Three-shank ripper
Ripping depth of ripper	mm	572
Lifting of ripper	mm	592
Number of carriers (each side)	-	2
Number of track rollers (each side)	-	6
Number of track shoes (each side)	-	37
of track shoe	mm	510
Track gauge	mm	1880
Ground length and ground pressure	mm/MPa	2430-0.067
Pitch	mm	203.2
Forward speed	km/h	0-3.29
		0-5.82
		0-9.63
Reverse speed	km/h	0-4.28
		0-7.59
		0-12.53

& Due to improvements made to the product, data herein is subject to change without notice.

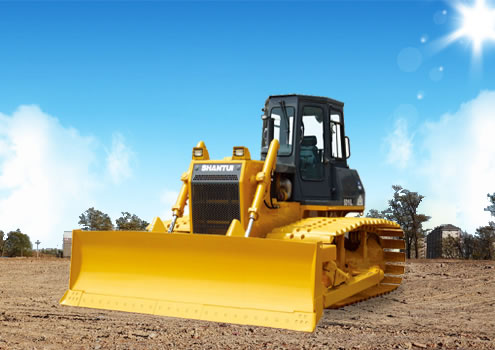

& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
