Main technical data in travel configuration

Category	Item		Unit	Parameter
Dimension		Overall length	mm	11810
		Overall	mm	3995
		Overall	mm	2490
	Wheel base	Axles 1 and 2	mm	4600
		Axles 2 and 3	mm	1350
	Track	Front axle	mm	1939
		Mid-rear axle	mm	1800
Weight	Total vehicle curb weight		kg	21150
	Axle load	Front axle	kg	5070
		Mid-rear axle	kg	16080
	Extinguishant rated load weight	Water	kg	4000
		Foam	kg	3200
	Total vehicle weight		kg	28500
	Axle load	Front axle	kg	6700
		Mid-rear axle	kg	21800
Travel performance	Max.travel speed		km/h	≥90
	Min.turning diameter		m	≤24
	Approach angle		°	≥22°
	Departure angle		°	≥10°
	Braking distance(at 30km/h)		m	≤10
	Min.ground clearance		mm	314
	Max.gradeability		%	≥25%

Main technical data for operation

Category	Item		Unit	Parameter
Main performance	Rated working		m	32
	Max.working radius		m	19
	Outrigger span(longitudinal×lateral)		m	5.6×4.8
	Elevating range	The angle of 1st boom against horizontal	°	0~80°
		The angle of 2nd boom against 1st boom	°	0~140°
		The angle of 3rd boom against 2nd boom	°	0~210°
Fire-fighting performance	Fire pump rated flow		L/s	50
	Fire pump rated outlet pressure		MPa	≥1.5
	Water monitor	Water monitor flow	L/s	50
		Water monitor pressure	MPa	≤1.0
		Water monitor reach	m	≥65
		Foam monitor flow	L/s	48
		Foam monitor pressure	MPa	≤1.0
		Foam monitor reach	m	≥55
		Nozzle travel range	up:-15°down:60°left and right:±135°
Working speed	Boom deploying time		S	≤140
	Outrigger extending time		S	≤40
	Slewing speed		r/min	0~1

& Due to improvements made to the product, data herein is subject to change without notice.

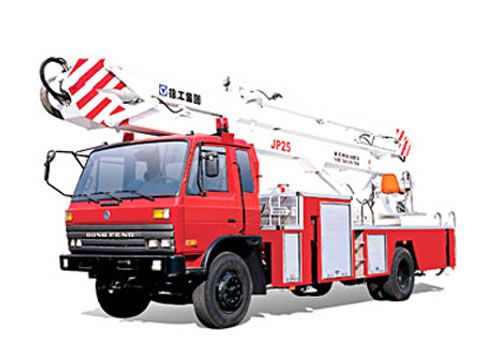

& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
