Technical Specifications
|
Type
|
Unit
|

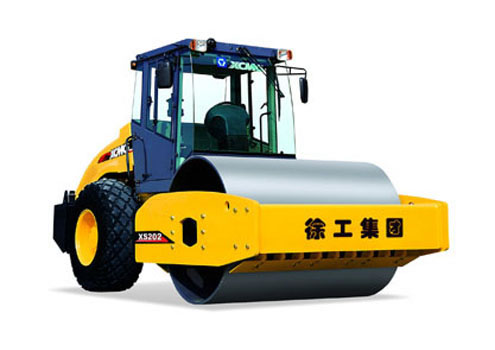

XS202
|
|
Operating weight
|
kg
|
20000
|
|
Load on front drum
|
kg
|
13500
|
|
Load on rear wheels
|
kg
|
6500
|
|
Drum
|
mm
|
2130
|
|
Static linear load
|
N/cm
|
621
|
|
Vibration frequency(Low/High)
|
Hz
|
28/33
|
|
Nominal amplitude(High/Low)
|
mm
|
1.86/0.93
|
|
Excitation force(High/Low)
|
KN
|
370/255
|
|
Travel speed
|
km/h
|
0~10
|
|
Steering angle
|
°
|
±33
|
|
Swing angle
|
°
|
±10
|
|
Theoretical gradeability
|
%
|
50
|
|
Min. turning radius
|
mm
|
6500
|
|
Engine model
|
|
Cummins B5.9
|
|
Engine power
|
kw
|
132
|
|
Rated engine speed
|
r/min
|
2200
|
|
Engine oil consumption
|
g/kW.h
|
232
|
|
Hydraulic oil tank capacity
|
L
|
240
|
|
Fuel tank capacity
|
L
|
240
|
& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
