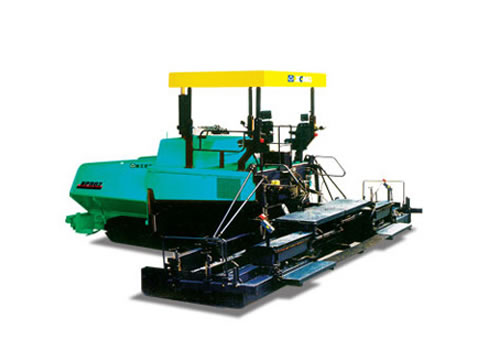

RP602 multi-functional paver can be applied to the paving of basic stabilized material and surface material. The machine adopts independent right drive and left drive, micro-computer control, and the telescopic screed with single vibrating tamper. The material level is controlled by ultrasonic sensing technique, featuring good stability in low-speed paving, even material feeding, high preloading compactness, good pavement evenness, and easy operation. It can absolutely meet the construction requirements.

Technical Specifications

Item	Unit	RP602
Basic paving	m	2.5
Max. paving	m	6
Max. paving thickness	mm	380
Paving speed	m/min	0~14
Travel speed	km/h	0~3.0
Theoretical productivity	t/h	400
Hopper capacity	t	13
Gradeability	%	20
Pavement evenness	mm/3m	3
Cross slope error	%	±0.03
Crown adjustment range	%	0~3
Diesel engine model		BF4M1013C
Diesel engine power	kw	118
Diesel engine speed	r/min	2300
Diesel oil tank capacity	L	230
Overall weight	t	15.8~21.5
Dimension	mm	6230×2500×3855
Vibration frequency	Hz	/
Screed heating mode		Electrical heating
Material level control mode		Automatic Control by Ultrasonic Sensor
Automatic Leveling Control		Simulation control

& Due to improvements made to the product, data herein is subject to change without notice.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual machine
