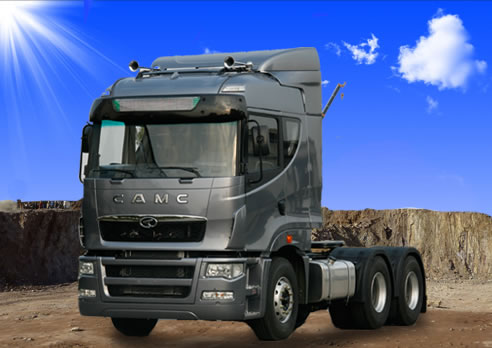

(Xingkaima Series): Lightweight Principle of CAMC Heavy Truck Tractor 6×4
Under the condition that the performance, bearing capacity and security of truck are ensured, the lightweight is realized by optimizing the design structure, applying new materials and technologies and adopting the lightweight assembly.

Main Technical Performance and Specification Schedule of CAMC Heavy-duty Tractor

Vehicle Model	HN4250HP40C2M3/
Driving Model	6×4
Cab Model	H08 High Roof
Overall Length(mm)	6980
Overall (mm)	2496
Overall (mm)	3930
Engine Model	ISM420E30 /ISME440 20
Engine Brand	CUMMINS
Gearbox Model	ZF16S1950
Frontal Axle Model	CAMC
Driving Axle Model/Ratio	CAMC/4.7
Tire Specifications	12R22.5
Wheelbase(mm)	3150+1450/3200+1350
Front Suspension(mm)	1550
Rear Suspension(mm)	840
Tread(F/R)(mm)	2065/1860/1860
Kerb mass(kg)	8805
Permitted Front Axle Load(kg)	7000
Permitted Rear Axle Load(kg)	18000
Minimum ground clearance(mm) under rear axle	257
Approaching angle(°)	14
Departure angle(°)	24
Minimum turning diameter(m)	8

Due to improvements made to the product, data herein is subject to change without notice.
& Different outfits are provided for the different configurations of the motor vehicles.
& Affected by the reproduction conditions, the pictures and data differ somewhat from the actual motor vehicles.
& CAMC reserves the rights to make final explanations.
