| Model | AH5310GFL6 | Batch | 257 | |

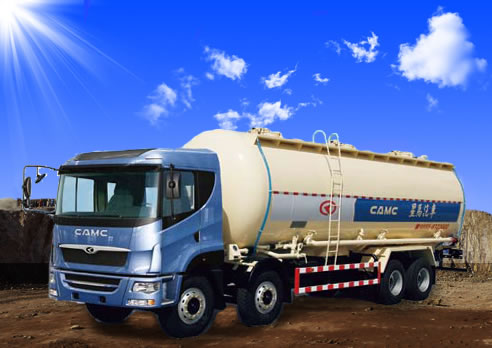

| Branch | Xingma | Classification | partical material tranporting truck | |
| Rated Weight | 13000 | Total Weight | 31000 | |
| Preparative Weight | 17870 | Fuel | Diesel | |
| Emission Standard | GB17691-2005 stage 3,GB3847-2005 | Axis | 4 axis | |
| Wheelbase | 1800+4600+1350,1800+4575+1400 | Wheel Pressure | 6500/6500/18000(double mixed axis) | |
| Spring | Left 14,right 13/left 14 right 13/12,11/11/12,4/4/-,11/11/- | Wheel | 12 wheels | |
| Wheel Standard | 11.00-20,12.00-20 16PR,11.00R20,12.00R20 16PR | Approach/Depature Angle | 16/11 | |
| Front/Rear Suspension | 1500/2715 | Front Wheelspan | 2022/2022,2041/2041 | |
| Rear Wheelspan | 1830/1830 | ID Code | ||
| Total Length | 11990 | Total | 2496 | |
| Total | 3870 | Chassis 1 | ZZ1317M4669V | |
| Max Speed | 102,90 | Rated Member | - | |
| Rated Member in Cab | 2 | Turning Method | - | |
| PS | 1. Cylinder effective volume: 33 m³, cylinder length: 8300mm, diameter: 2480mm, transporing medium: charcoal powder (density 400kg/m³) 2. Q235 srewed steel plate as side and rear guardrail, section size 100mm×50mm, 530mm above ground 3. Driving log recorders with GPS are equipped. 4. Top slotting is unavailable. Rear part can not be opened either. | |||
